How to Control Welding Quality in Steel Structure Fabrication

Many buyers inspect finished steel structures, check the weld appearance, review NDT reports, and then assume that welding quality has been confirmed. These checks are important, but they are only the final verification.

In steel structure fabrication, many welding risks start before the arc is struck¹: unclear material traceability, poor bevel preparation, incorrect fit-up, insufficient preheating, or welding that does not follow the approved WPS. Once these steps are not controlled, final inspection may find some defects, but it cannot fully compensate for an uncontrolled process.

Welding quality in steel structures is controlled through proper preparation, qualified execution, in-process checks, and documented handover before final inspection. It is not “inspected into” the product at the end. It is built step by step during fabrication.

From a steel structure factory’s production and QC perspective, controlling welding quality means controlling the whole process chain: welding procedure, welder qualification, material confirmation, joint preparation, assembly fit-up, preheating, interpass temperature, welding sequence, deformation control, inspection, repair, and documentation.

For contractors and project owners, this matters because welding problems are not only technical defects. They may become structural safety risks, delivery rework, site installation mismatch, or project delays.

1. Welding Quality Is Built Before Final Inspection

A common misunderstanding is that a smooth weld bead or an NDT report is enough to prove welding quality. In reality, the finished weld is only the result of many earlier decisions and controls.

Before final inspection, welding quality has already been influenced by:

• Whether the correct steel material was used
• Whether welding consumables matched the project requirement
• Whether the WPS was suitable and followed
• Whether the welder was qualified for the process and position
• Whether the groove and root gap were prepared correctly
• Whether preheating and interpass temperature were controlled
• Whether welding sequence reduced distortion and residual stress
• Whether process checks were recorded during production

Final inspection is necessary, but it is mainly a verification step. It can identify visible defects and many internal discontinuities, depending on the inspection method and coverage. However, it cannot fully prove that all upstream controls were properly performed unless there are supporting process records.

For example, a weld may pass visual inspection but still have been made with poor fit-up, uncontrolled heat input, or unclear material traceability. These issues may increase the risk of later cracking, deformation, or non-conformance during project review.

In our routine factory QC work, we treat welding quality as a process chain. If one link is weak, the whole chain becomes less reliable.

For projects following standards such as EN 1090, ISO 3834, AWS³, or other project-specific requirements, this type of process control and documentation is usually an important part of quality assurance.

2. Start with WPS, Qualified Welders, and Material Traceability

Before welding begins, the factory should confirm three basic conditions: the welding procedure, the welder’s qualification, and the material traceability. Without these, welding quality becomes difficult to control consistently.

Welding Procedure Specification

A Welding Procedure Specification, or WPS, defines how a joint should be welded. It usually includes information such as:

• Base metal grade and thickness range
• Welding process
• Filler metal or welding consumable
• Welding position
• Joint type and groove details
• Preheat and interpass temperature requirements
• Current, voltage, travel speed, or heat input range
• Post-weld requirements, if applicable

The purpose of a WPS is not to create paperwork. It gives welders and supervisors a controlled method to follow⁴ during production. If welders adjust parameters freely without reference to the WPS, weld quality may become inconsistent from one joint to another.

For critical projects, the WPS may need to be supported by procedure qualification records according to the applicable code or project requirement.

Welder Qualification

A qualified WPS still depends on qualified execution. Welders should be qualified for the welding process, material type, thickness range, and welding position required by the project.

For example, a welder qualified for flat-position fillet welds may not automatically be suitable for overhead butt welds on thicker members. The qualification range must match the actual production work.

In factory practice, QC or production supervisors should check welder qualification before assigning work, especially for critical joints such as:

• Full penetration butt welds
• Beam-to-column connections
• Crane beam joints
• Box columns
• Heavy plate girders
• Dynamic or fatigue-sensitive structures

Welder qualification does not guarantee every weld will be perfect, but it reduces the risk of uncontrolled workmanship.

Material Traceability

Material traceability is another basic requirement. The factory should be able to show that the steel used in fabrication matches the project specification.

This usually includes:

• Mill test certificates
• Steel grade confirmation
• Heat number or batch number
• Material marking and transfer records
• Cutting and nesting records
• Component identification records

Traceability is important because welding performance is closely related to steel grade, chemical composition, thickness, and mechanical properties. If the wrong steel is used, final weld inspection alone cannot fully solve the problem.

Welding consumables should also be controlled. Filler metal, electrodes, flux, and shielding gas should match the WPS. For some consumables, storage, drying, and issuing records are also important to reduce moisture-related welding risks⁵.

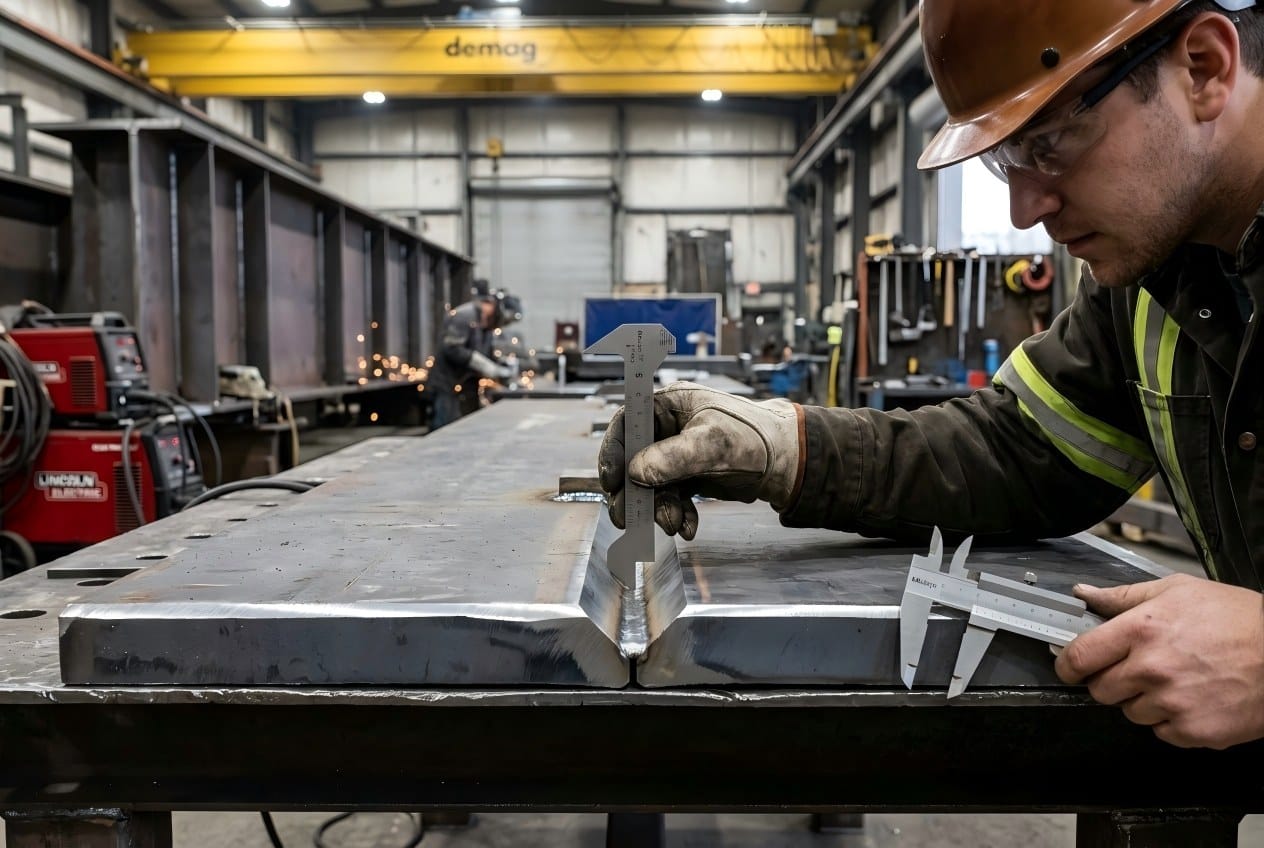

3. Control Bevel Preparation and Fit-Up Before Welding

Many welding defects are caused before welding actually starts. Poor bevel preparation, incorrect root gap, misalignment, contamination, or unstable assembly can make it difficult for even a skilled welder to produce a sound weld.

This is why bevel and fit-up inspection should be done before the first arc is struck.

Key items include:

In steel structure fabrication, groove preparation may be done by flame cutting, plasma cutting, machining, or grinding. After cutting, surfaces often need grinding or cleaning to remove oxide, slag, moisture, or contamination.

Fit-up is equally important. If the root gap is too large, the welder may need excessive filler metal and heat input, increasing distortion. If the gap is too small, penetration may be insufficient. If the members are misaligned, the finished component may still pass weld inspection but fail dimensional inspection or cause site installation problems.

This is especially important for:

• Column splices
• Beam flange butt welds
• Box column joints
• Truss node connections
• Crane beam connections
• Heavy plate assemblies

A practical factory control point is to require QC confirmation before welding critical joints. This step may take time, but it prevents many avoidable repairs later.

4. Monitor Preheating, Interpass Temperature, and Welding Parameters

After joint preparation, the next key point is welding process control. This includes preheating, interpass temperature, welding parameters, layer cleaning, and welding environment.

These controls are especially important for thick plates, high-strength steels, restrained joints, low-temperature environments, or projects with strict impact toughness requirements.

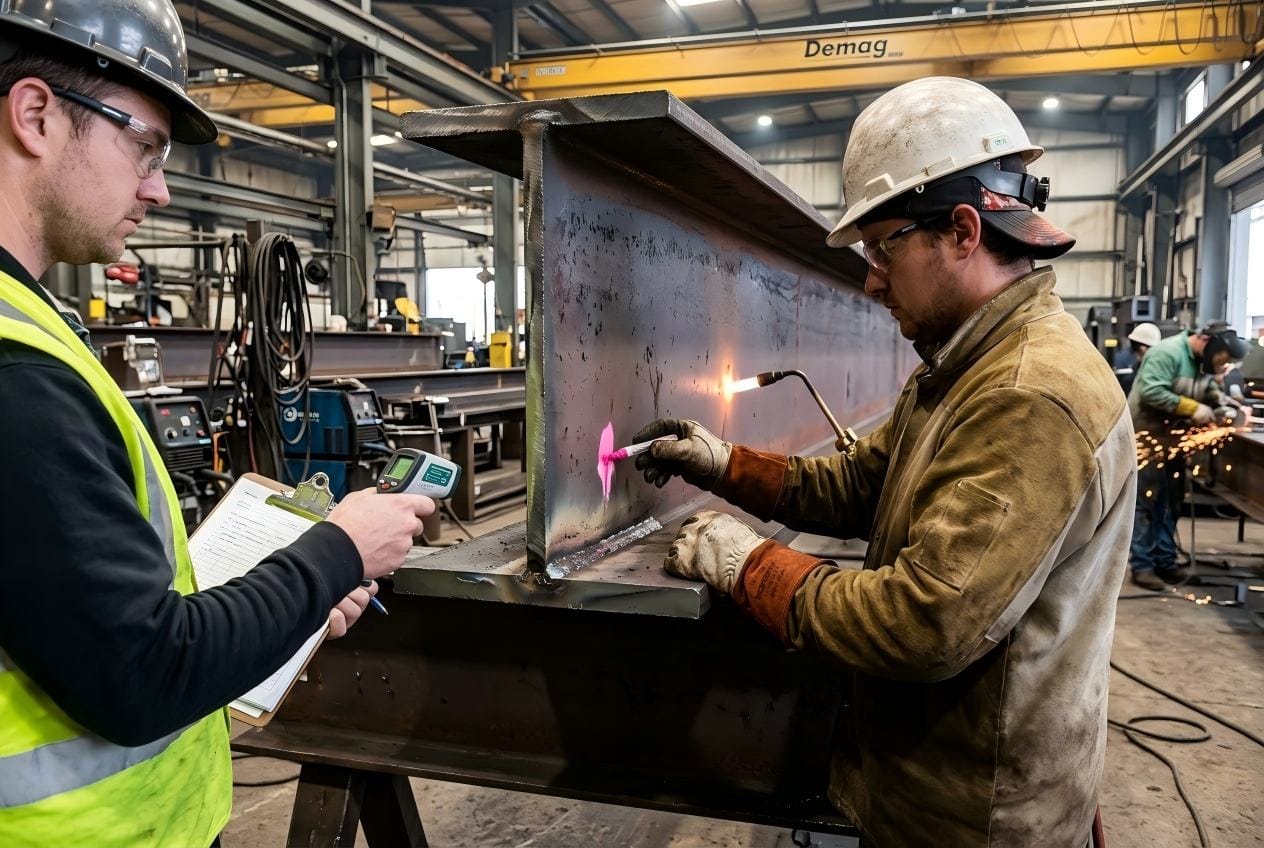

Preheating

Preheating raises the temperature of the base metal before welding. It helps reduce rapid cooling and may reduce the risk of hydrogen-induced cracking⁷, depending on the steel grade, thickness, restraint level, consumable type, and welding condition.

The required preheat temperature should not be guessed on site. It should be defined by the approved WPS, project specification, or applicable welding standard.

In factory practice, preheating control should include:

• Checking whether preheat is required
• Heating the correct area around the joint
• Measuring temperature with suitable tools
• Recording temperature for critical joints
• Preventing welding from starting before the required temperature is reached

Interpass Temperature

For multi-pass welds, interpass temperature should also be controlled. If the joint becomes too cold between passes, cracking risk may increase in some conditions. If it becomes too hot, the heat-affected zone and weld metal properties may be affected⁸.

The acceptable range should follow the WPS and project requirement.

QC or supervisors may check interpass temperature during production, especially for thick plates, high-strength steel, or important structural joints.

Welding Parameters

Welding current, voltage, travel speed, heat input, electrode angle, shielding gas flow, and welding speed should stay within the WPS range.

If current is too low or travel speed too fast, fusion may be insufficient. If heat input is too high, distortion may increase and mechanical properties may be affected. Stable parameters help produce consistent weld quality across repeated joints.

In factory production, common control methods include:

• Welder training based on WPS requirements
• Supervisor spot checks during welding
• Parameter monitoring for critical welds
• Layer-by-layer cleaning before the next pass
• Stopping work when actual conditions deviate from the WPS

The welding environment should also be considered. Wind, rain, moisture, and very low ambient temperature may affect arc stability, shielding gas protection, and cooling rate. Outdoor welding may require windbreaks, shelters, or additional temperature control.

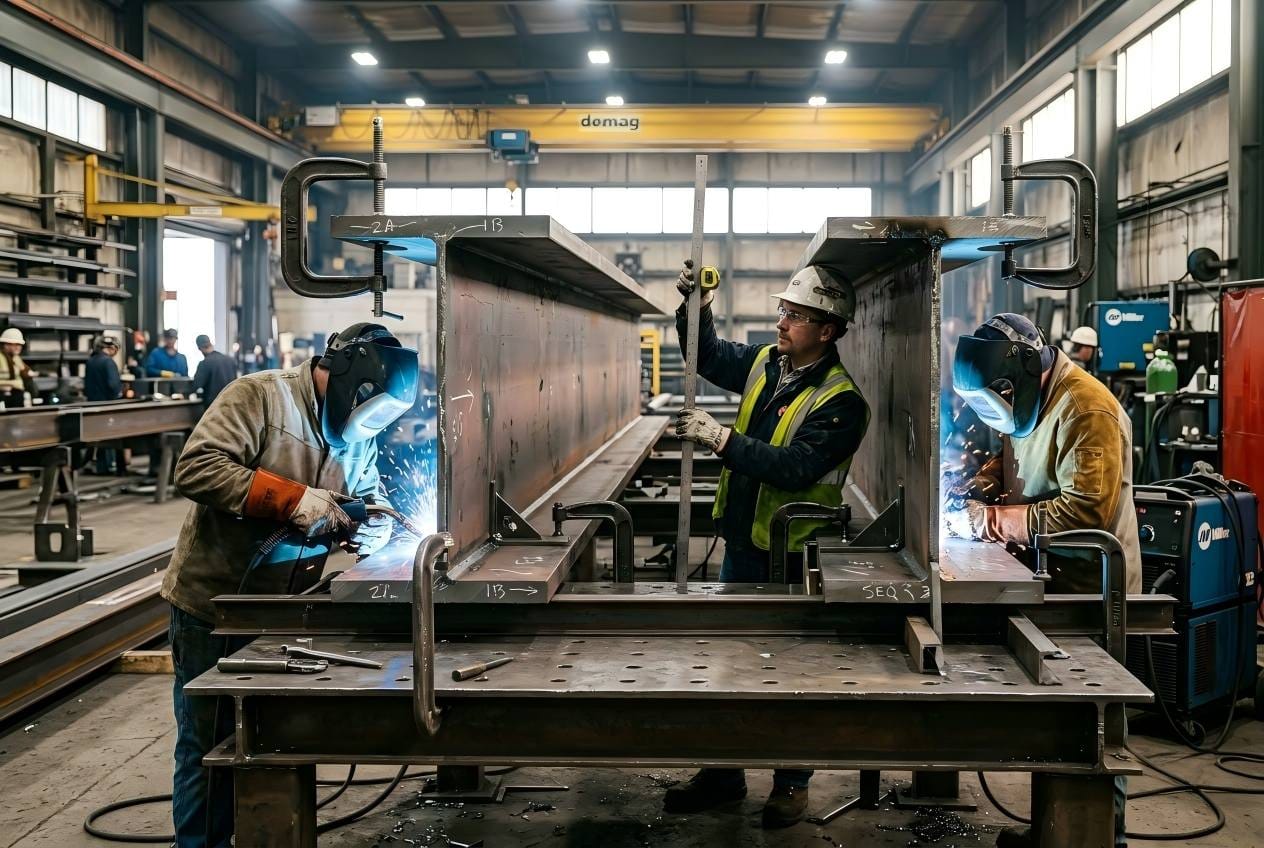

5. Manage Welding Sequence and Deformation Control

Welding creates heat. Heat causes expansion during welding and shrinkage during cooling. This shrinkage can lead to deformation, residual stress⁹, misalignment, and dimensional deviation.

For steel structure projects, welding deformation is not only a factory issue. It can become a site installation issue.

If beams, columns, rafters, trusses, or box members are distorted beyond tolerance, the result may be:

• Bolt holes not matching on site
• Connection plates not aligning
• Columns or beams requiring correction before erection
• Additional site grinding, shimming, or rework
• Delays in installation progress

Therefore, welding sequence should be planned before production, especially for large or heavily welded components.

Common deformation control practices¹⁰ include:

• Balanced welding on opposite sides
• Symmetrical welding sequence
• Segment welding or skip welding where suitable
• Back-step welding for certain long welds
• Using fixtures, jigs, or temporary restraints
• Controlling heat input and pass sequence
• Checking dimensions during production, not only after completion
• Applying correction methods when distortion exceeds tolerance

For example, when welding built-up H-beams, welding only one side continuously may pull the member into a curve. A balanced sequence helps reduce this risk. For box columns, the welding order should consider shrinkage from different sides so that the member does not twist or bow excessively.

Some deformation is normal in welded fabrication, but it should be predicted, controlled, measured, and corrected within project tolerance. Prevention is usually more efficient than heavy correction after welding.

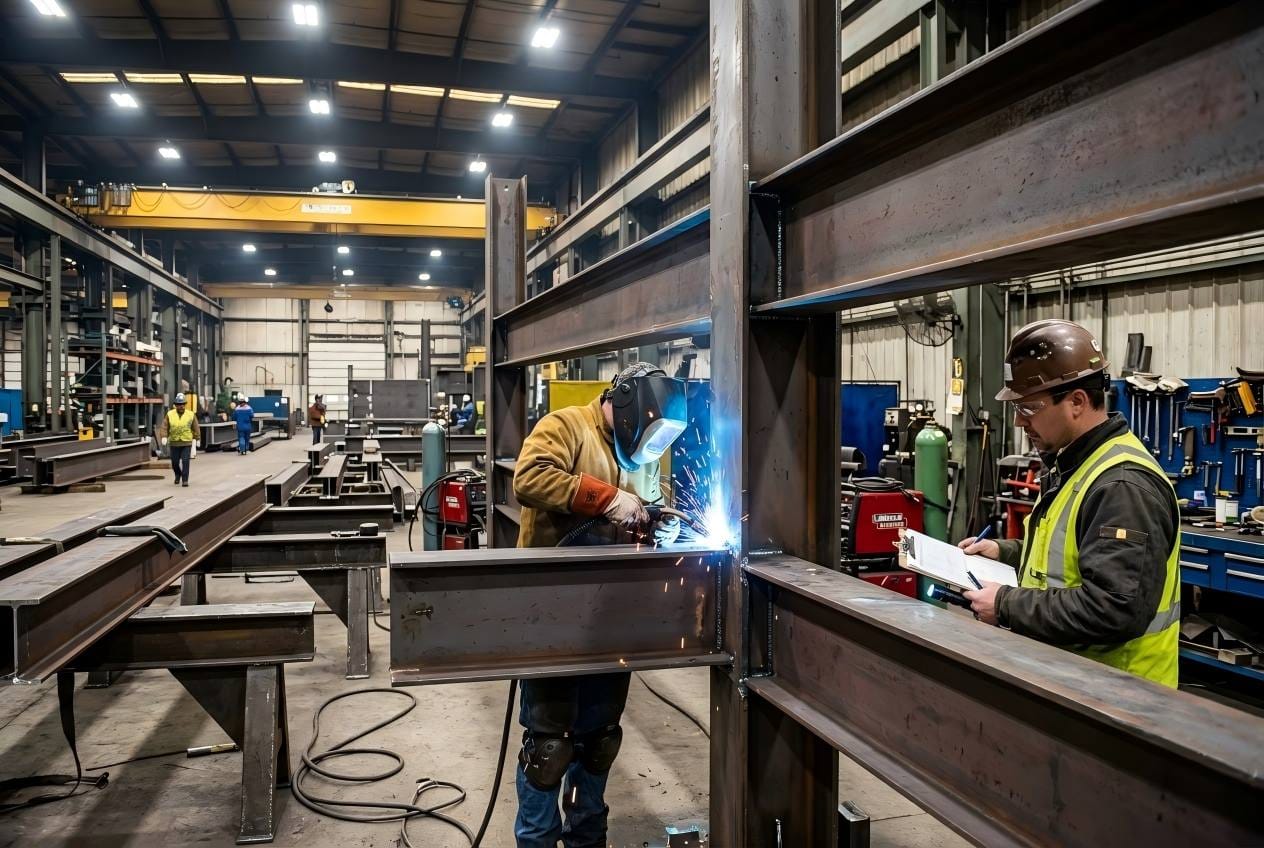

6. Use Inspection Records and NDT to Verify and Trace Quality

After welding, inspection verifies whether the weld meets acceptance requirements. However, inspection should not be treated as a substitute for process control. It should be part of a complete quality chain.

A practical welding inspection process usually includes:

1. Before welding
   Material confirmation, WPS confirmation, welder qualification, bevel inspection, fit-up inspection, cleanliness check, and preheat confirmation.

2. During welding
   Parameter checks, interpass temperature checks, layer cleaning, welding sequence control, and monitoring of distortion.

3. After welding
   Visual inspection, dimensional inspection, NDT if required, repair control, re-inspection, and final documentation.

Visual Inspection

Visual inspection is often the first and most direct inspection method. Inspectors check items such as:

• Weld size
• Weld profile
• Undercut
• Overlap
• Cracks
• Porosity visible on the surface
• Arc strikes
• Spatter
• Crater defects
• Surface cleanliness after welding

Visual inspection is simple but important. Many problems can be found before more costly NDT is performed.

Dimensional Inspection

For steel structures, dimensional inspection is closely related to welding quality. Welding deformation may affect:

• Overall length
• Straightness
• Camber
• Twist
• Flange squareness
• Hole position
• Connection plate alignment
• Assembly tolerance

A weld may be acceptable by NDT but still cause problems if the component dimension is out of tolerance.

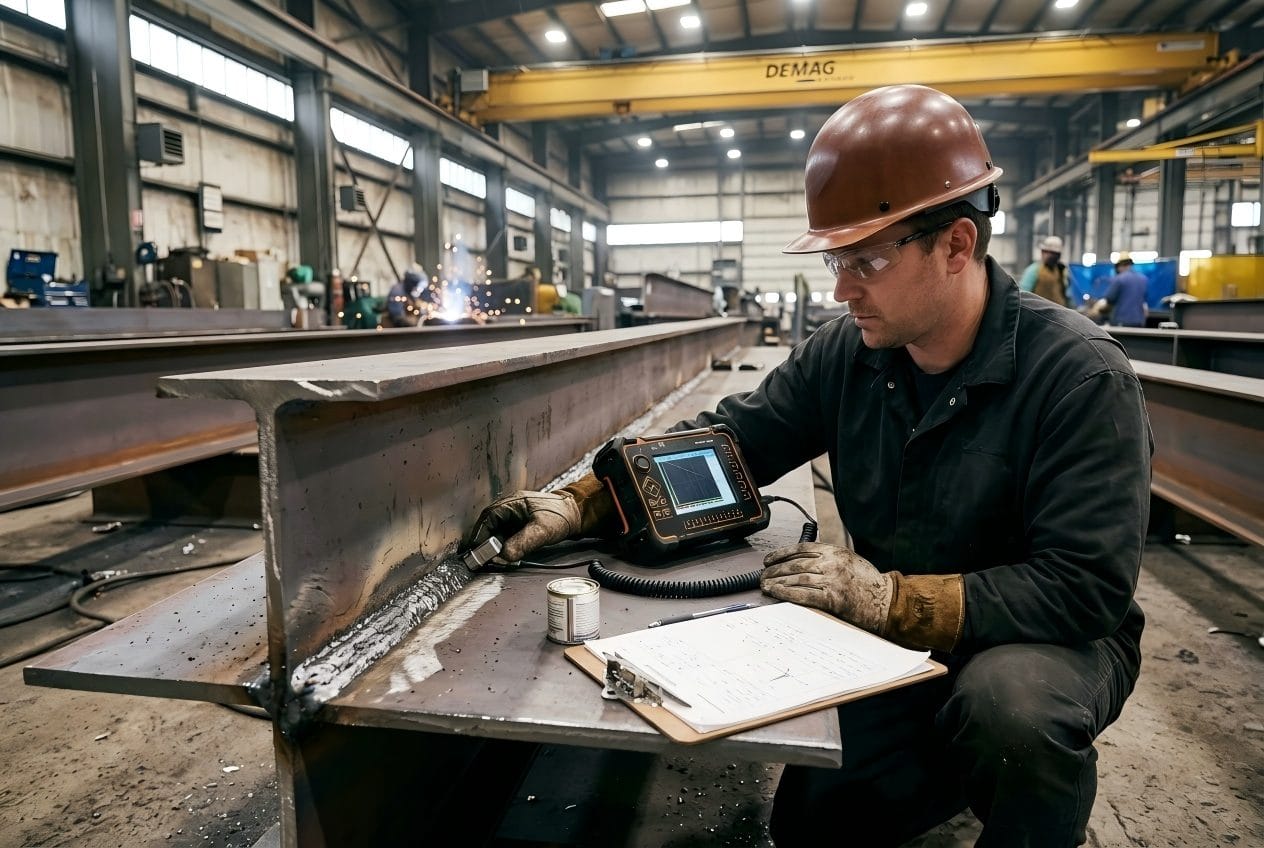

NDT

NDT methods should be selected according to project specifications, welding joint type, weld class, and applicable standards. Common methods include:

• UT / Ultrasonic Testing for internal discontinuities in suitable welds
• MT / Magnetic Particle Testing for surface and near-surface defects in ferromagnetic materials
• PT / Penetrant Testing for surface-breaking defects
• RT / Radiographic Testing where required and practical

The inspection percentage may vary from project to project. Critical joints may require higher inspection coverage than secondary welds.

NDT is important, but it is a verification tool. It should confirm that the controlled welding process produced acceptable welds. It should not be the only evidence of welding quality.

Repair and Re-Inspection

When defects are found, the repair process should be controlled¹¹. This includes:

• Identifying the defect type and location
• Confirming the repair method
• Removing the defect properly
• Re-welding according to an approved procedure
• Re-inspecting the repaired area
• Recording the repair and re-inspection result

Without this closed loop, the same problem may repeat, or the project may lose traceability.

What Should Contractors Check When Evaluating a Steel Structure Supplier?

For overseas contractors, project owners, or peer steel structure companies, supplier evaluation should not rely only on finished product photos or a final NDT report.

A more practical question is: Can the supplier show evidence that welding was controlled during production?

Before choosing a steel structure supplier, contractors can ask:

• Can you provide WPS documents for the project?
• Are welders qualified for the required welding process, position, and material thickness?
• Can material heat numbers be traced to fabricated components?
• How are welding consumables stored, dried, and issued?
• Do you inspect bevel preparation and fit-up before welding?
• How do you record preheat and interpass temperature for critical joints?
• Are welding parameters checked during production?
• How do you control welding sequence and deformation?
• What visual inspection and dimensional inspection records are provided?
• Which NDT methods and inspection percentages are applied?
• How are weld repairs and re-inspections documented?
• What final quality documents are handed over with the shipment?

A reliable welding quality-control system should leave records at each important step. These records help the contractor understand whether the factory is controlling the process or only checking the product after completion.

Conclusion: Welding Quality Comes from Controlled Production

Welding quality in steel structure fabrication is not guaranteed by final inspection alone. It is built through a controlled production process.

From a factory production and QC point of view, the key controls include:

• Approved WPS and suitable welding procedures
• Qualified welders
• Material and consumable traceability
• Bevel preparation and fit-up inspection
• Preheat and interpass temperature control
• Welding parameter monitoring
• Proper welding sequence and deformation control
• Visual inspection, dimensional inspection, and NDT
• Repair, re-inspection, and complete quality records

For contractors, the most important point is not only whether the finished weld looks good. It is whether the supplier can prove that welding quality was controlled before, during, and after welding.

A polished finished product is useful to see, but welding records, process checks, and traceability documents give stronger evidence of real manufacturing control.
