1. Client Background & Project Requirements
The client is an Australian commercial property / automotive service site that required a large-scale shade solution for an outdoor parking area. Due to strong sunlight, high UV exposure, and frequent vehicle turnover, the client needed a durable carport system that could provide reliable weather protection while maintaining an open and modern appearance.
The project required multiple continuous canopy runs to cover customer and staff parking spaces. The structure needed to be suitable for Australian outdoor conditions, including UV resistance, wind load performance, corrosion protection, and long-term low maintenance.
Key requirements included:
- Large parking area coverage with multiple canopy rows
- High-strength galvanized steel structure
- UV-resistant dark shade membrane
- Open-span design to reduce obstruction for vehicles
- Modular fabrication for fast installation on site
- Clean appearance suitable for a commercial automotive environment
- Integrated lighting support under the canopy
2. Design & Manufacturing Process

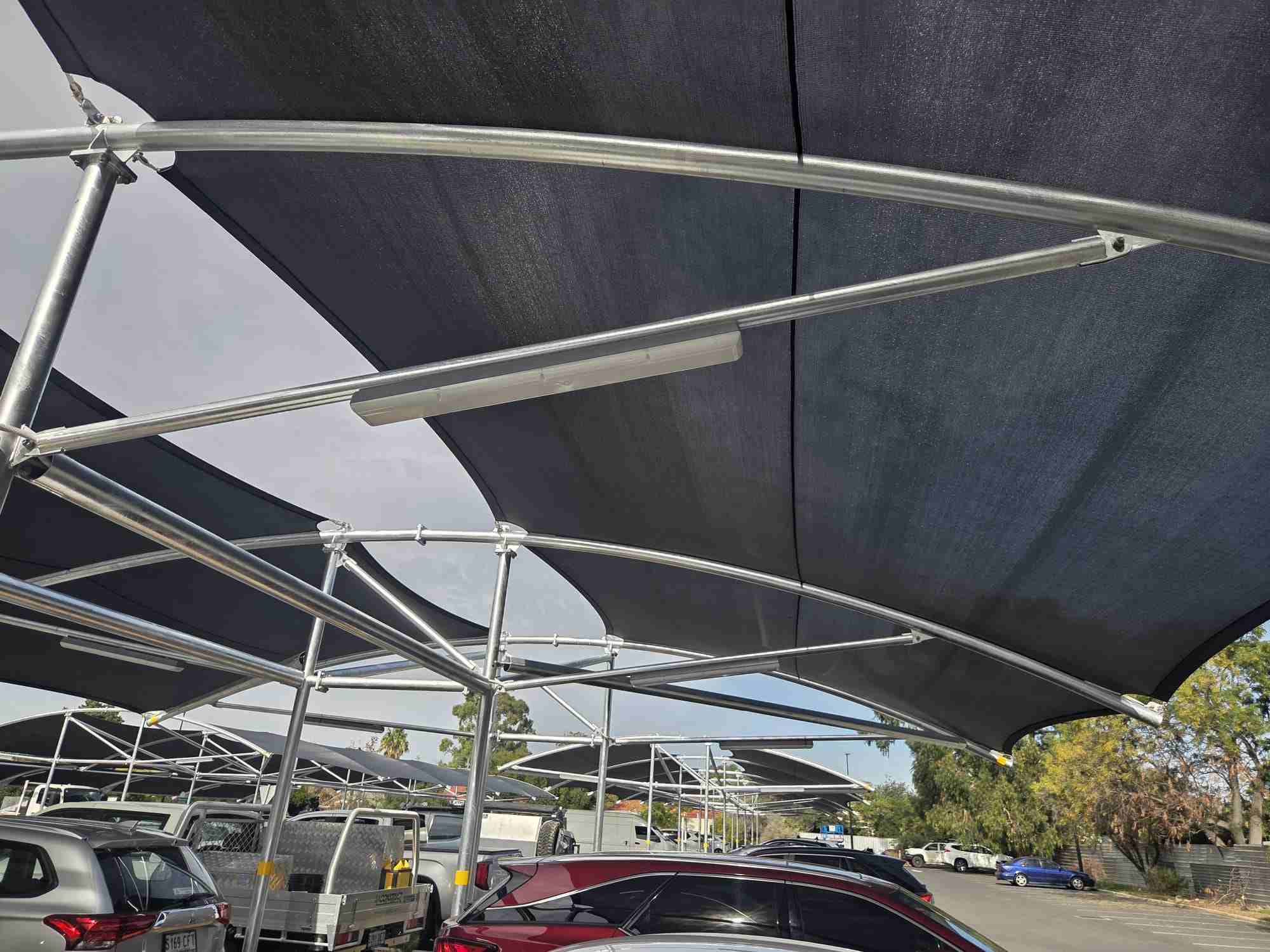

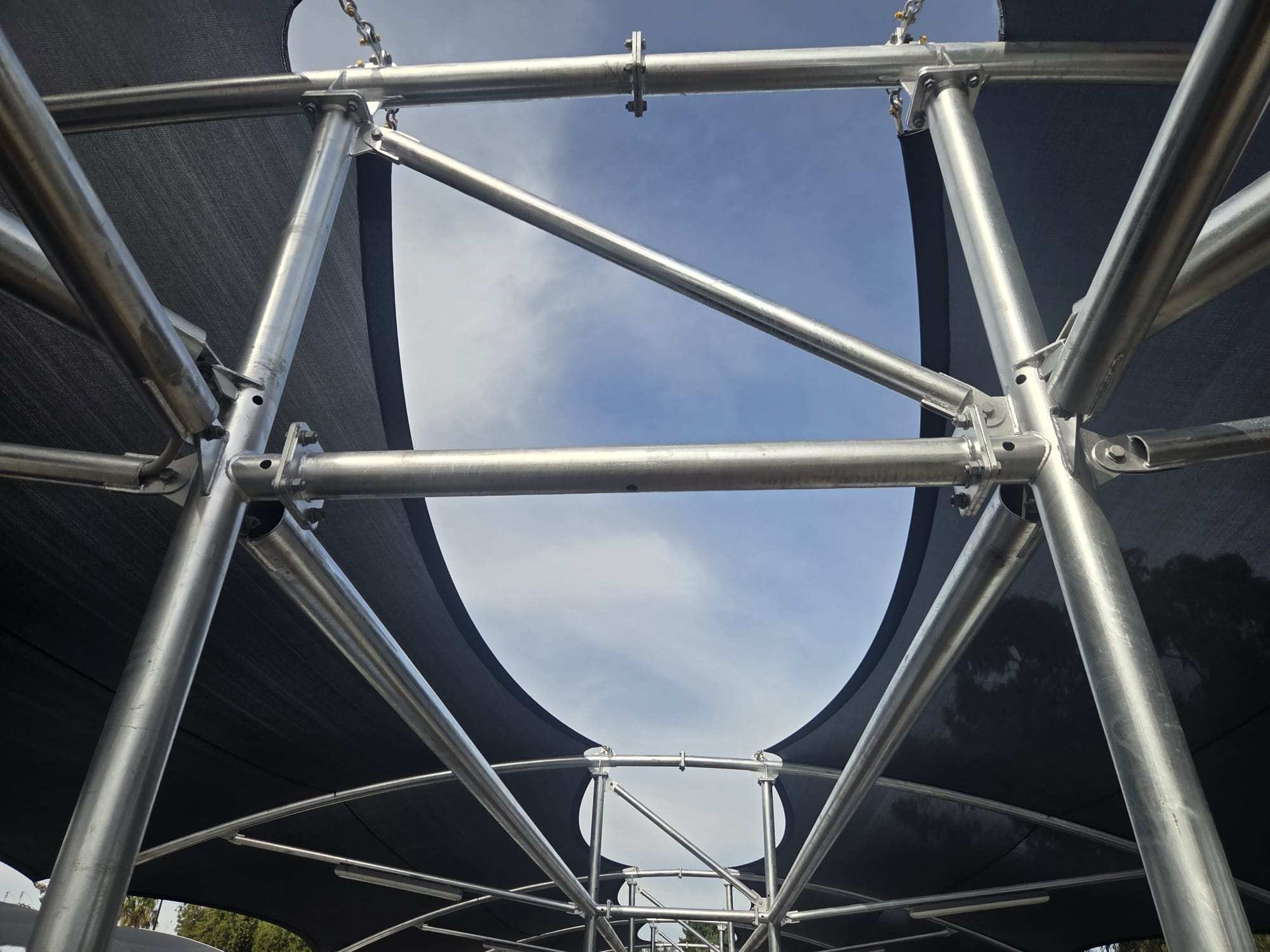

For this project, a modular tensile membrane carport system was adopted. Each canopy run was designed with curved steel arches, circular hollow section columns, diagonal bracing, and tensioned fabric panels. The curved roof profile improves both appearance and drainage while helping the structure resist wind uplift.
During the manufacturing stage, the steel members were fabricated according to detailed shop drawings. The main steel components included galvanized circular columns, curved roof beams, horizontal support tubes, diagonal braces, connection plates, and bolted joints.
The steel frame was hot-dip galvanized to improve corrosion resistance for long-term outdoor use in Australia. Fabric panels were cut and tensioned according to the canopy geometry, ensuring a smooth membrane surface and consistent shading performance.
The manufacturing process included:
- Structural design and layout optimization.
- Steel tube cutting, bending, welding, and drilling.
- Trial assembly inspection of key connection points.
- Hot-dip galvanizing surface treatment.
- Membrane cutting and edge reinforcement.
- Packing by canopy run for easier site installation.
- Export packaging suitable for sea freight.
3. Client’s Core Challenges
The client’s main challenge was to cover a large parking area without reducing traffic flow or parking efficiency. Traditional roofing systems would require heavier steel members and more columns, which could increase construction cost and interfere with vehicle movement.
Another challenge was the Australian climate. The canopy system needed to withstand intense sunlight, outdoor corrosion, and wind loads while keeping a neat commercial appearance.
The client also required a structure that could be installed in stages. Since the car park remained in operation, the steel structure had to be delivered in organized packages and assembled efficiently on site.
Core challenges included:
- Providing shade for many parking bays across several canopy runs.
- Reducing the number of obstructive columns.
- Ensuring stable performance under wind and UV exposure.
- Achieving corrosion resistance for long-term outdoor use.
- Coordinating fabrication accuracy for curved steel members.
- Simplifying installation and reducing on-site work time.
4. Project Highlights & Key Features

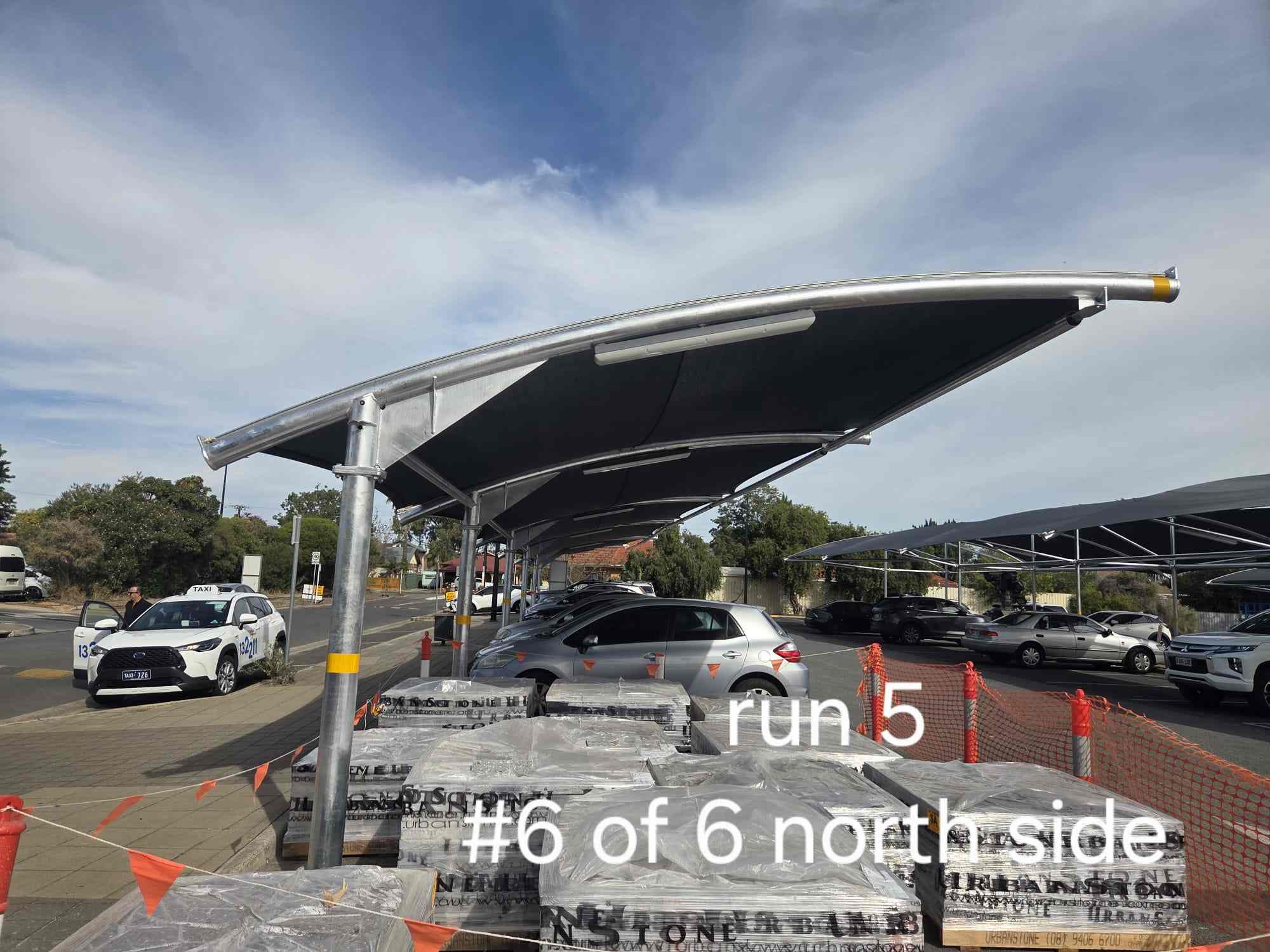

This project features a modern tensile membrane carport system with galvanized steel tube framing and dark shade fabric. The curved roof design creates a clean architectural appearance while providing practical protection for vehicles.

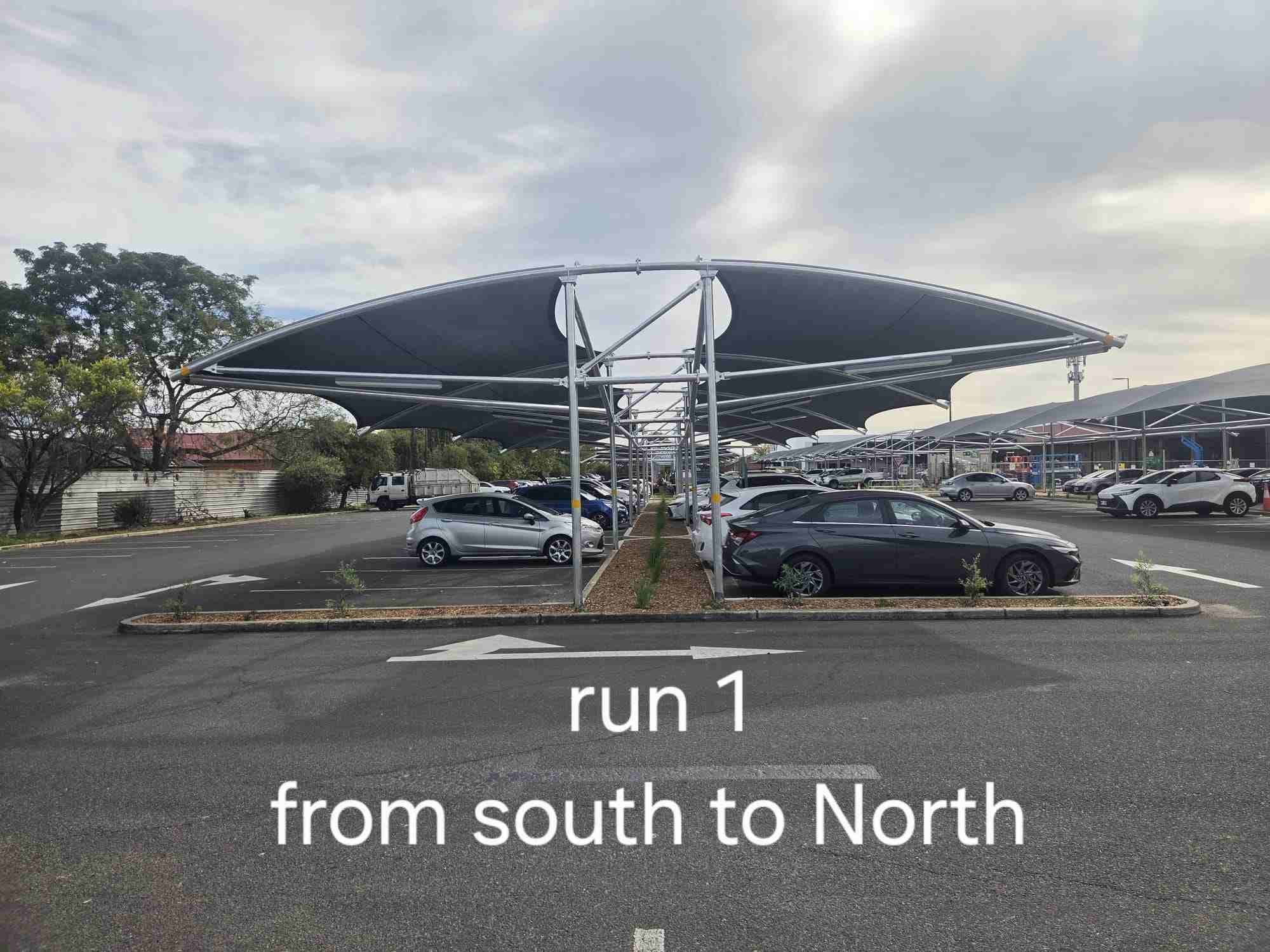

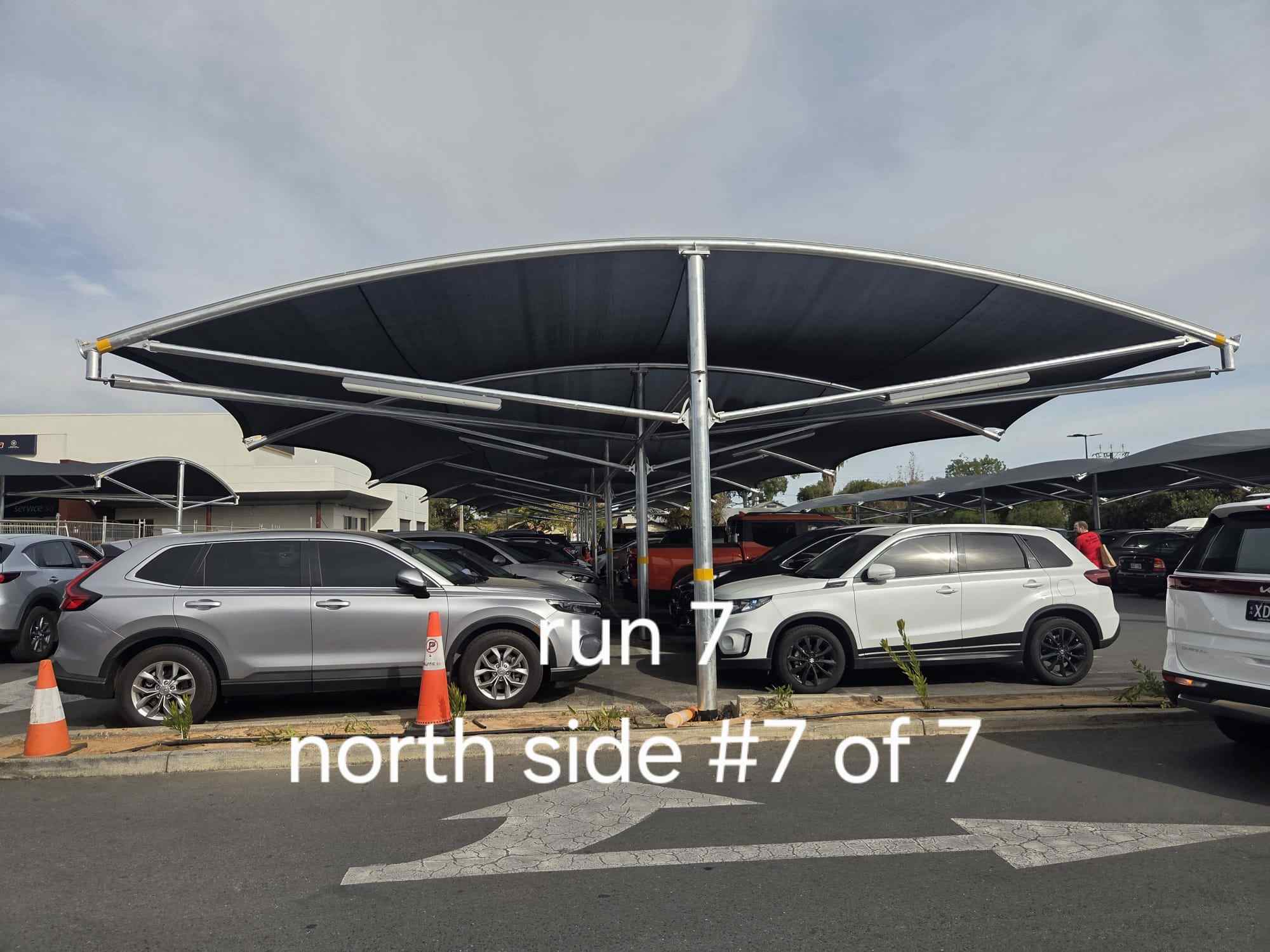

The canopy runs are arranged in parallel rows, covering parking bays on both sides of the central support line. The steel frame uses circular hollow sections with bolted and welded connections, providing both strength and installation convenience.
Key features include:
- Hot-dip galvanized steel frame for excellent corrosion resistance.
- Curved tubular steel structure for a modern and lightweight appearance.
- Tensile shade membrane providing UV protection and heat reduction.
- Modular canopy runs suitable for large car park layouts.
- Open parking design with reduced column interference.

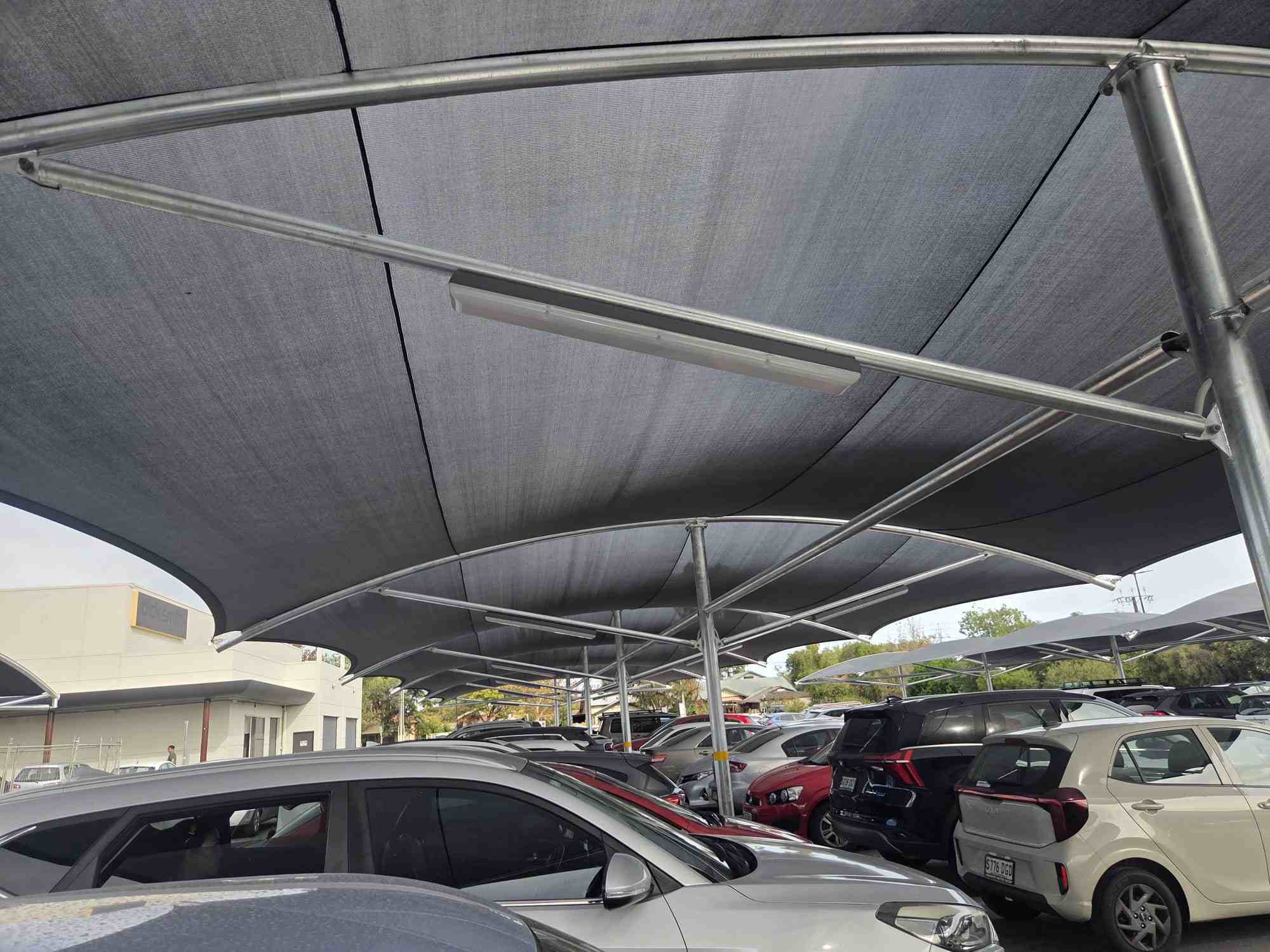

- Integrated lighting installation under the canopy for night visibility.
- Bolted connection system for faster site assembly.
- Custom fabrication based on parking layout and local requirements.
The dark membrane fabric also improves visual comfort by reducing glare and creating a cooler shaded parking environment..
5. Performance Outcomes
After installation, the carport system provided effective shade coverage for the outdoor parking area, improving the parking experience for customers, staff, and visitors.
The galvanized steel structure delivered strong durability and a clean finish, while the tensile membrane provided practical sun protection in the Australian climate. The modular design allowed the project to be installed efficiently across multiple canopy runs.
Performance outcomes included:
- Large-area vehicle shade coverage.
- Reduced direct sunlight and vehicle interior heat.
- Improved comfort for customers and staff.
- Enhanced visual appearance of the commercial parking area.
- Long-term corrosion resistance through hot-dip galvanizing.
- Stable structural performance with bracing and curved steel beams.
- Efficient installation through prefabricated steel components.
The completed canopy system created a professional, durable, and visually attractive parking solution for the client’s commercial site.
