1. Client Background & Requirements
────────────────────────────────────────────────────
Our client, a leading heavy machinery manufacturer, required a robust facility to expand their production line. The project presented unique engineering challenges that required a specialized approach:
- High Load-Bearing Capacity: The structure needed to support heavy industrial equipment and potential overhead crane loads.
- Multi-Level Design: To optimize land usage, the design required a multi-story frame integrating workshop space on the ground floor with administrative offices above.
- Rapid Deployment: The client had a strict deadline, requiring the steel skeleton to be erected within 45 days of foundation readiness.
- Seismic Stability: Located in a seismically active zone, the building required a rigid structural system capable of withstanding significant lateral forces.
2. Design & Manufacturing Process
────────────────────────────────────────────────────
To meet the stringent structural demands, our engineering team utilized advanced fabrication techniques:
- Precision Detailing: We utilized Tekla Structures for 3D modeling, ensuring that every bolt hole and connection plate was perfectly aligned before manufacturing began.
- Material Specification:
- Steel Grade: High-strength Q355B steel was used for all primary members.
- Column Design: As seen in the site photos, we manufactured heavy-duty Lattice Columns. These provide superior axial load capacity and torsional rigidity compared to standard H-beams, making them ideal for multi-story heavy industrial buildings.
- Surface Treatment: All components underwent Sa2.5 shot blasting followed by comprehensive epoxy zinc-rich priming to ensure long-term corrosion resistance in industrial environments.
3. Project Highlights & On-Site Execution
────────────────────────────────────────────────────

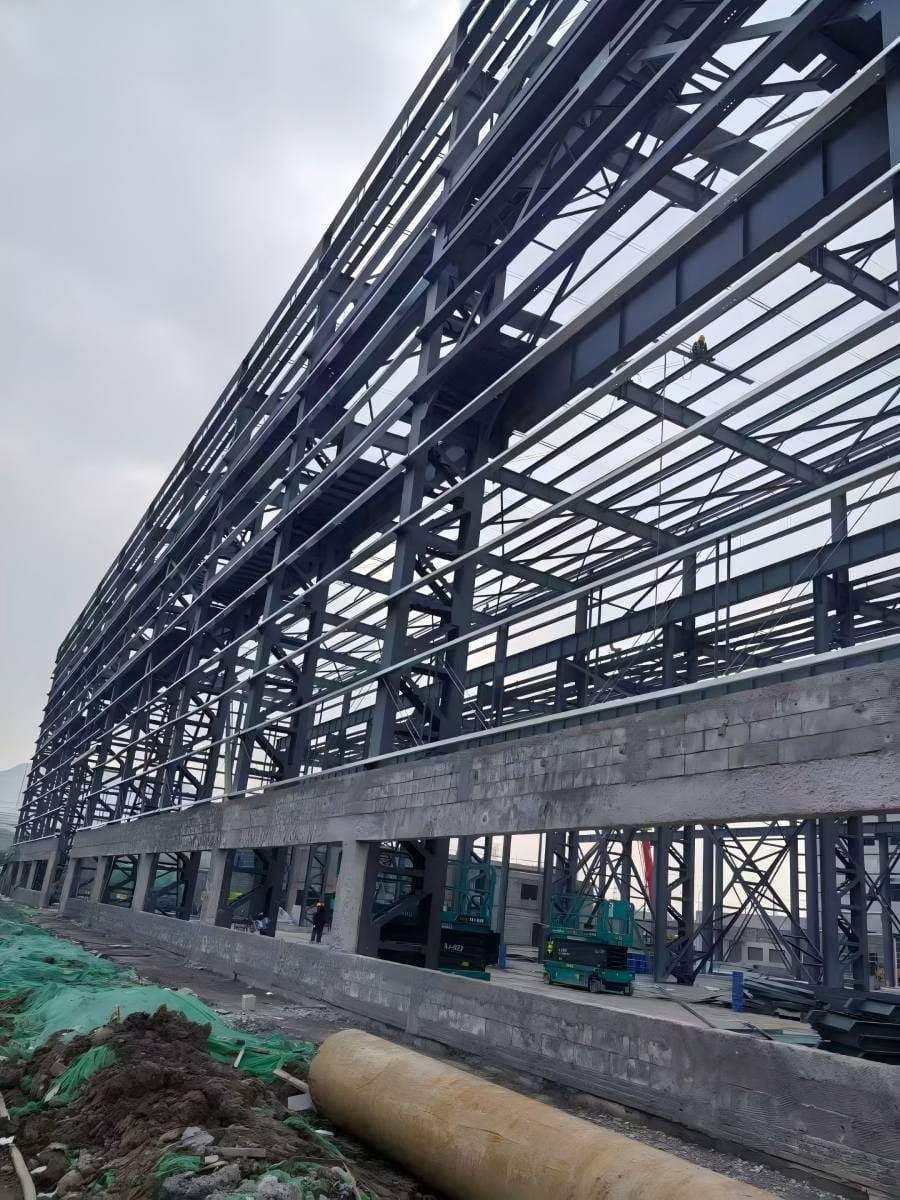

Based on the site progress photos, the project features several key technical highlights:
- Complex Erection Method:

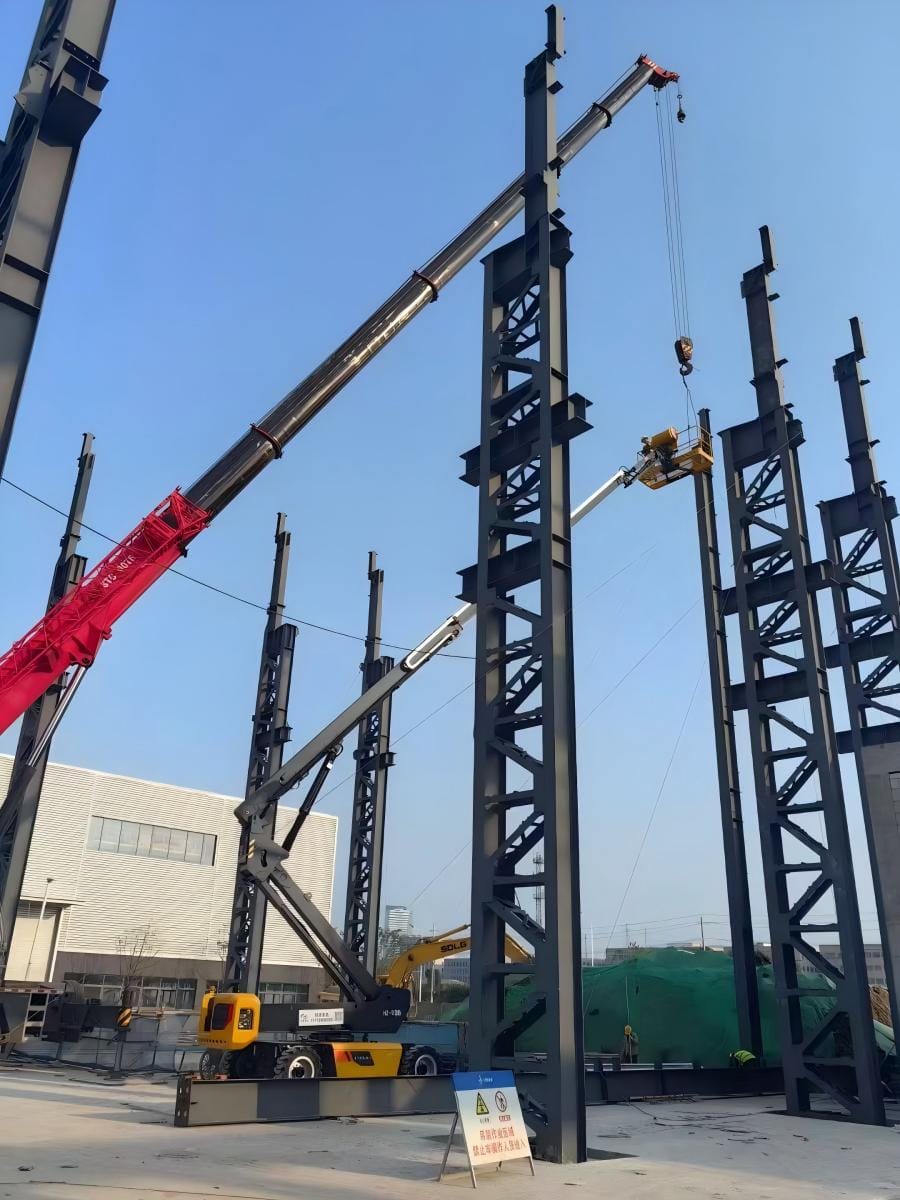

- Heavy Lifting: The photos demonstrate the erection of massive steel columns using heavy mobile cranes. The sheer size of these columns reflects the structural integrity of the building.
- Safety & Efficiency: We utilized Mobile Elevating Work Platforms (MEWPs/Boom Lifts) for high-altitude bolting. This modern installation method ensures worker safety and is significantly faster than traditional scaffolding.
- Structural Density:

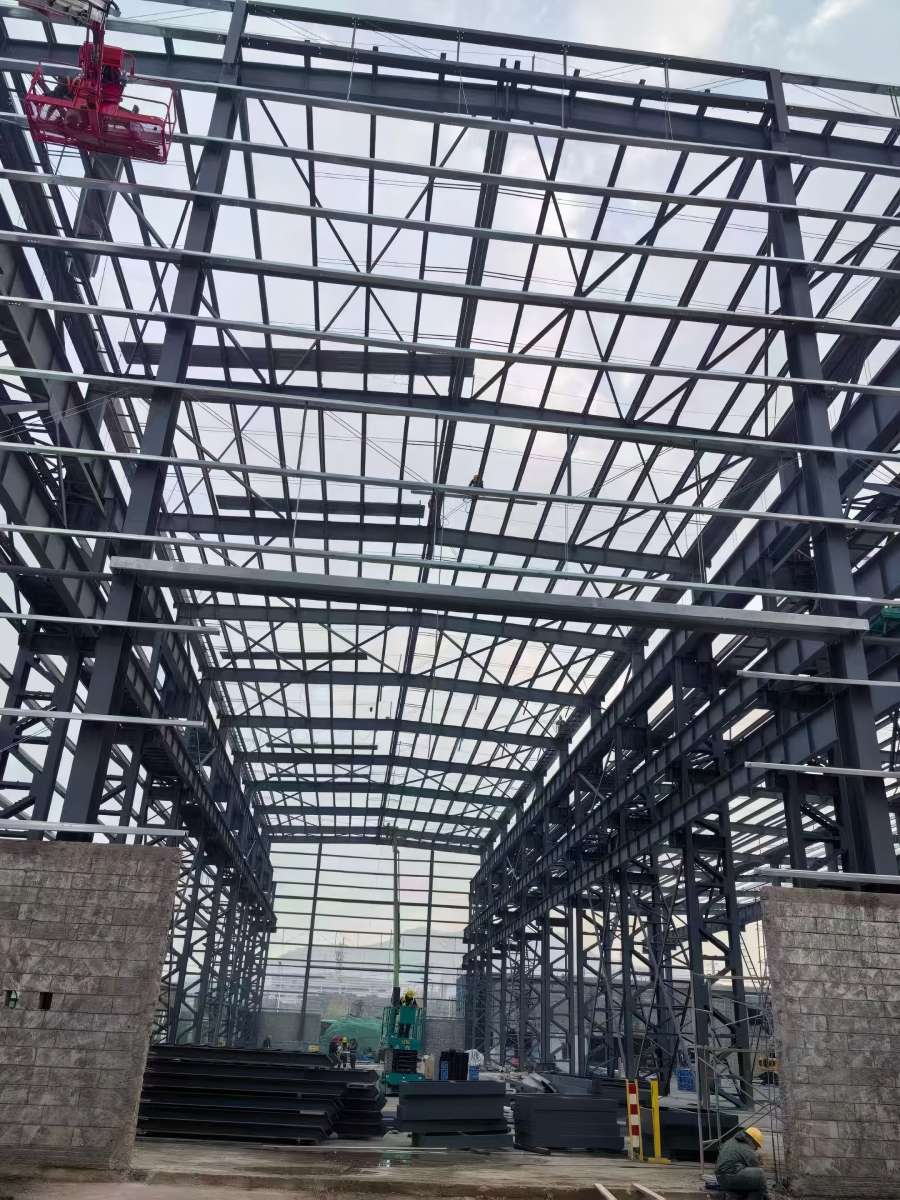

- Rigid Framework: Images shows the density of the floor beams and trusses. This “skeleton” is designed to support composite concrete floors, allowing for heavy machinery operation on upper levels.
- Roof System: The roof framing utilizes a robust purlin system designed to support insulated roof panels and potential rooftop ventilation units.
4. Results & Client Testimonials
────────────────────────────────────────────────────
Project Outcome: The project was a testament to precision engineering. All prefabricated components fit perfectly on-site, eliminating the need for field welding or modification. The main steel structure was topped out 5 days ahead of schedule, allowing the client to commence interior fitting early.
