1. Client Background & Project Requirements
Our client, a leading Vietnam furniture company, was expanding its production capacity to meet growing global demand. They required a new, state-of-the-art facility that could accommodate large-scale assembly lines, heavy machinery, and a multi-level operational workflow.
Client’s Core Challenges:
- Aggressive Timeline: The facility needed to be operational within 18 months to launch a new product line, demanding rapid design, fabrication, and construction.
- Structural Integrity & Load Capacity: The building had to support heavy overhead cranes and complex mezzanine structures for component storage and sub-assembly, requiring a robust and precisely engineered steel frame.
- Energy Efficiency & Natural Light: To reduce long-term operational costs and create a better working environment, the client prioritized a design that maximized natural daylight and incorporated high-performance insulation.
- Architectural Appeal: The client wanted the facility to reflect their brand’s modern, high-tech image, moving beyond a standard “industrial box” design.
2. Design, Manufacturing & Logistics Solution
Our team provided a fully integrated, end-to-end solution that transformed the client’s vision into a functional and aesthetically pleasing industrial asset.
Design Phase:
- Structural Modeling: Using advanced software like Tekla Structures and Autodesk Revit, our engineers designed a multi-span portal frame. This wide-span design minimizes the number of internal columns, creating a vast, open floor space essential for flexible assembly line configuration.
- Material Specification:
- Primary Structure: High-strength Q355B structural steel was used for all main columns, beams, and trusses, ensuring superior load-bearing capacity and long-term durability.
- Secondary Structure: Galvanized C and Z-purlins were specified for the roof and wall support systems.
- Cladding & Roofing:
- Walls: The building features horizontally-laid, 0.6mm corrugated steel panels with a durable PVDF coating. This choice provides excellent weather resistance and a sleek, modern architectural finish.
- Roof: A composite roofing system was designed, incorporating profiled steel sheets, high-density glass wool insulation, and an aluminum foil vapor barrier. This system offers exceptional thermal and acoustic performance.
- Daylighting: Large polycarbonate skylight panels were strategically integrated into the roof design to flood the interior with natural light, significantly reducing electricity consumption.
Manufacturing & Quality Control:
- All steel components were prefabricated in our controlled factory environment. Automated cutting, welding, and painting lines ensured every piece met exact design tolerances and stringent quality standards (ISO 9001).
- A multi-layer anti-corrosion painting process was applied to all primary structural members to guarantee a long service life in the local climate.
Logistics & Delivery:
- Components were meticulously labeled, packaged, and loaded into containers in the sequence of their on-site assembly. This “just-in-time” approach minimized site storage needs and accelerated the construction process.
3. Project Highlights & Key Features
This project showcases several key features that demonstrate our advanced capabilities in steel structure engineering and construction:

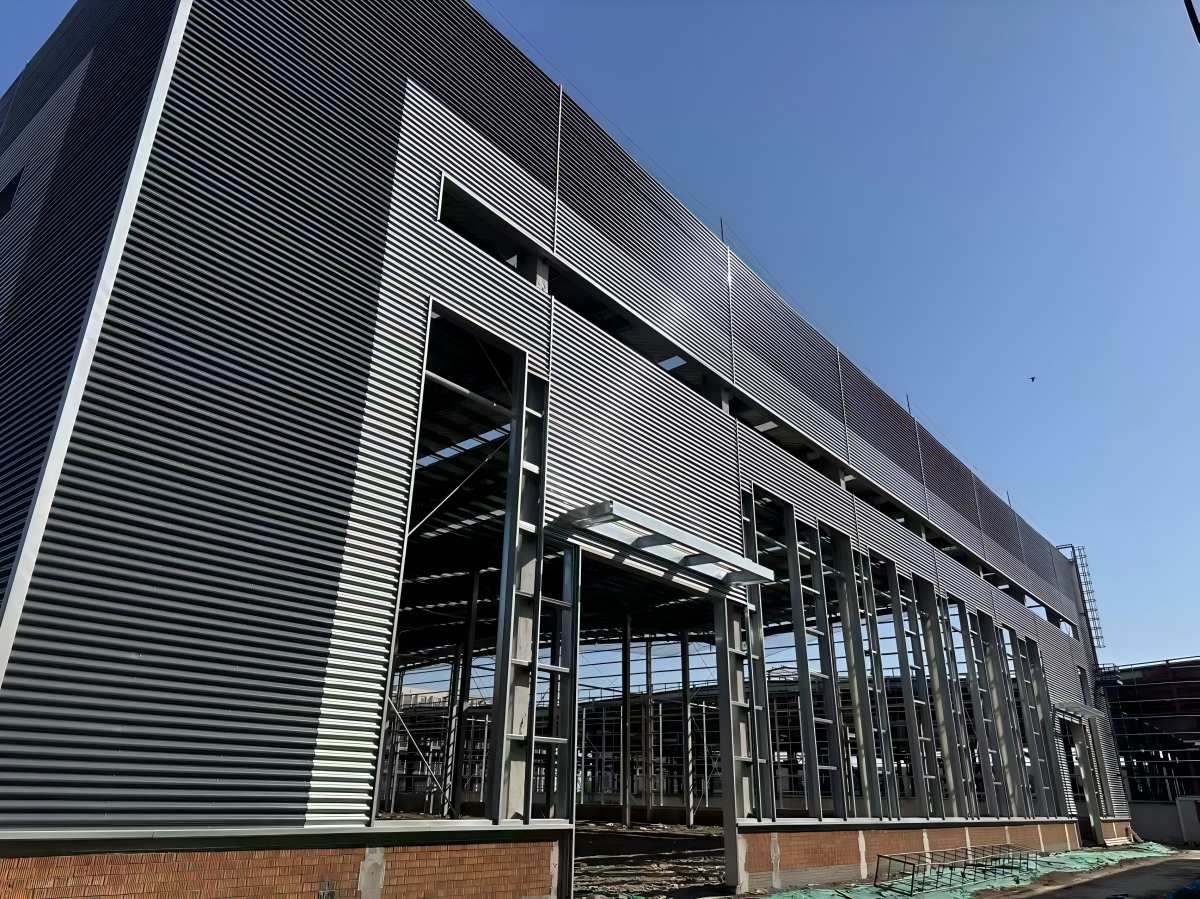

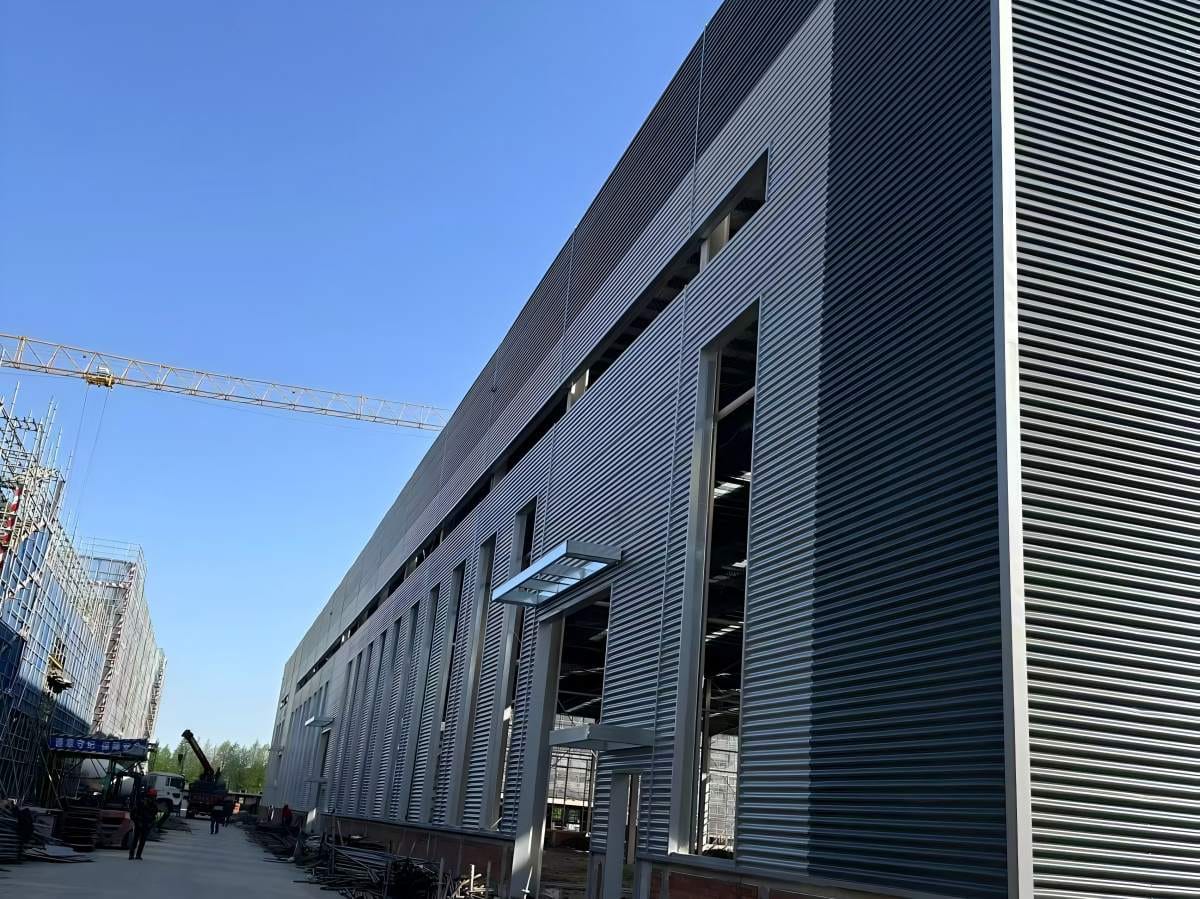

- Architectural Cladding: The use of fine-profile, horizontal corrugated panels creates a dynamic facade that is both functional and visually striking, elevating the building’s aesthetic beyond typical industrial structures.

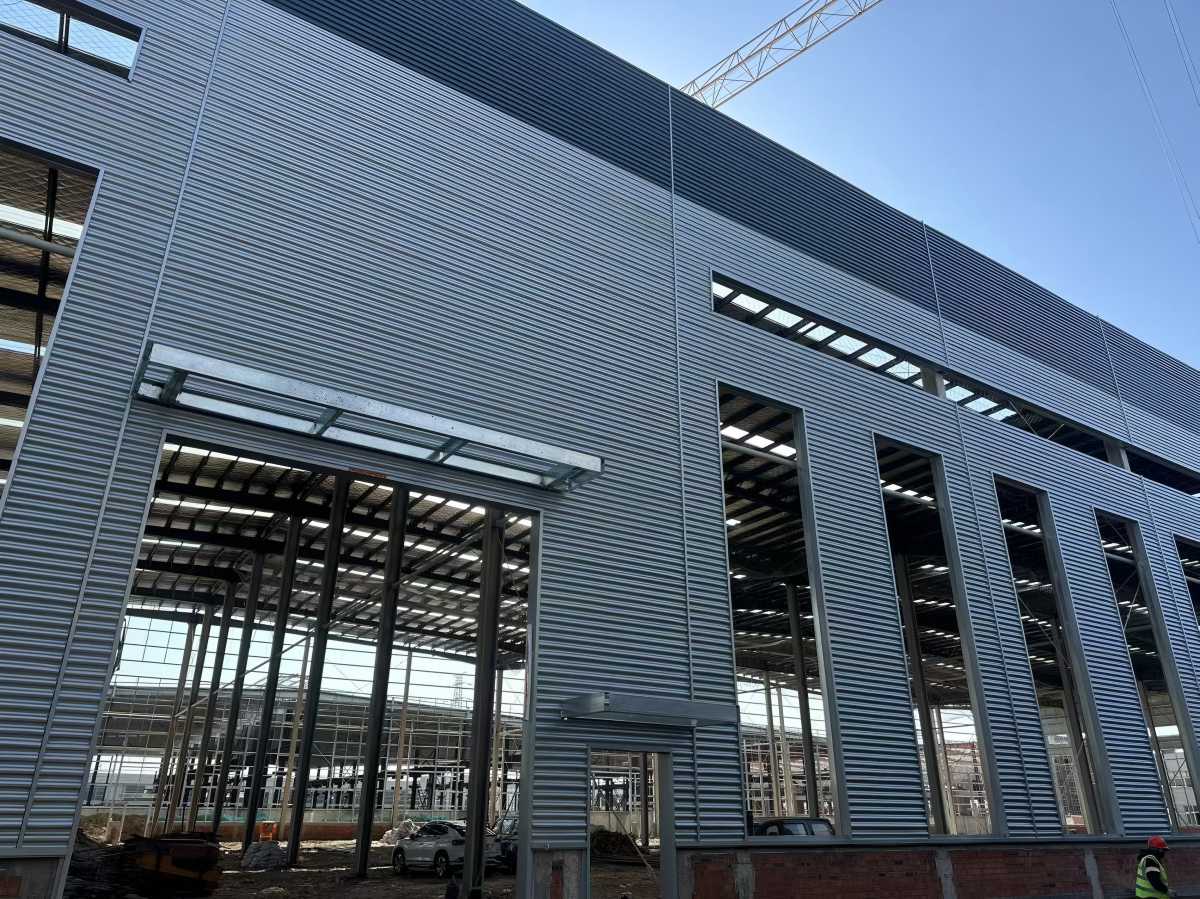

- Maximized Natural Lighting: The combination of long, vertical window apertures and extensive roof skylights creates a bright and energy-efficient interior space, enhancing worker productivity and safety.
- Efficient Space Utilization: The clear-span interior design offers unparalleled flexibility for arranging heavy machinery and production lines, allowing the client to adapt the layout as their needs evolve.
- Integrated Roofing System: The high-performance roof, complete with insulation and safety netting (visible in interior photos), ensures a climate-controlled and safe environment year-round.
- Robust Foundation Interface: The steel structure is anchored to a solid concrete plinth wall with a brick facade, providing a durable and moisture-resistant base that protects the lower wall panels from ground-level impacts and weathering.
4. Results & Client Testimonial
The project was completed ahead of schedule, enabling the client to begin equipment installation earlier than anticipated. The structural integrity, spatial efficiency, and modern design of the facility have exceeded all expectations.
